Panel Building Material Shops EPS Board / Glass Wool Board Rock Will or EPS Sandwich Panel Producing Line 380V/50HZ/3PH Sanxing

Product Description

SANXING GROUP steel expert Since 1992

Machine Manufacturer & Steel Building Constructor







Company Information:



Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing.

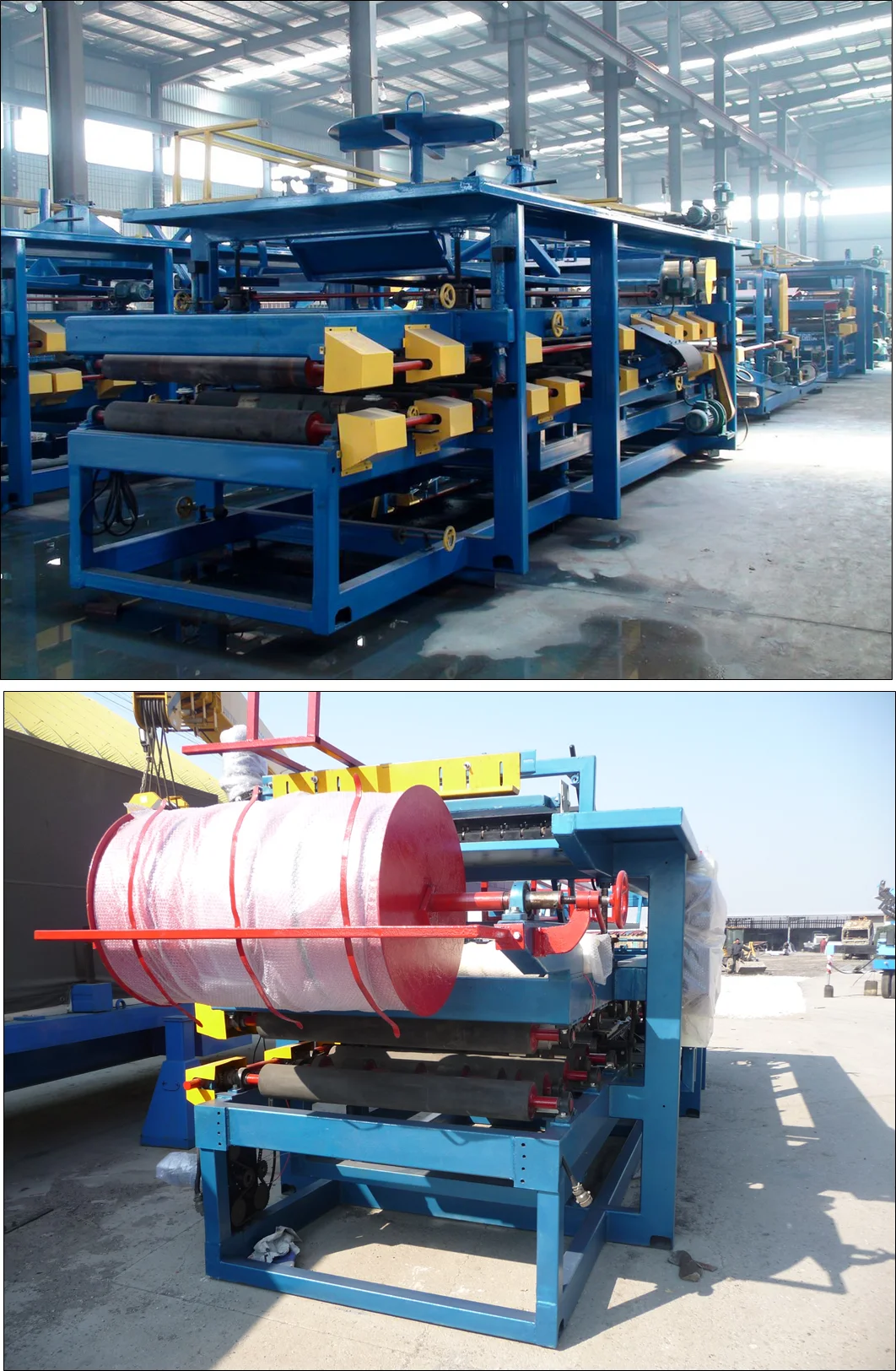

Rock woll or EPS Sandwich Panel Producing Line











The EPS or Rock Wool Sandwich Panel Machine consists of a roll forming equipment and a Sandwich Panel laminating system. It produces corrugated sandwich panels directly and they can work independently when is needed.


Annual production capacity of this EPS  / Rock Wool sandwich panel machine is about 500,000 m²



The machines to manufacture EPS  / Rock Wool sandwich panel has elegant appearance, low noise and high efficiency. In addition to sandwich panels, it can produce simple corrugated sheets.













Through an advanced Control Panel, it sets the panel length and makes cutting automatically. It was designed based on the use of advanced production techniques, combined the advantages of mechanical and electrical equipment.





Product Uses

The results of the EPS  / Rock Wool sandwich panel machine production are commonly used as roof and walls for factories, warehouse, garages, gymnasiums, exhibition centers, cinemas, Theatres, civil constructions, stadiums, cold storages and many other places with multiple applications








MAIN TECHNICAL SPECIFICATION:



The length of the production line: 38000mm × 2200mm × 2800mm

Total Weight: about 24000KG

Main Power: 35KW

Working Speed: 4m/min

Material: 45# steel, quenched HRC 58-62

Electric Standard : 380V / 50 HZ / 3 PHASE

Feeding Width: From 1000mm to 1250mm

Effective Width: 950mm

Thickness of the coil: 0.3-0.8mm

Density of EPS: 18KG/M3

Output: 600,000m2per year

Thickness of the material: 0.4-0.8mm

Width of Material: 1200mm Max

Core Material: EPS Board / Rock Wool

Production line speed: 3-5m/min

Production width: 1000mm/960mm

Production thickness: From 50mm to 200mm

Application: Public construction, roof and wall of workshop, building, both etc.

Function: wall panel, roof panel

Characteristic: quick construction, everlasting, beautiful





Certifications

Sanxing has the Certificate of ISO 9001, GMC, CE, BV SGS, and owns many patentes of inventions







Panel Building Material Shops EPS Board / Glass Wool Board Rock Will or EPS Sandwich Panel Producing Line 380V/50HZ/3PH Sanxing



After-Sales Service

1- The seller will offer the service of designing and calculation, far-distance guidance for free within 3 years.

2- The reply from the seller will be within 72 hours after receiving the buyer’s technical requirements.

3- The seller will help the buyer to prepare all the necessary data/information to build the project in within 3 years.



GUARANTEE

1. The guarantee period for rollers, shafts, cutting blade and bending paddles is 10 years from date of the machine arrives in the destination, Not included Damage man-made.

2. If any parts of the machine are damaged by man-made, the seller only charge for the basic cost.




Packaging & Shipping

Naked ,By vessel 2* 40 Feet High Container.



Panel Building Material Shops EPS Board / Glass Wool Board Rock Will or EPS Sandwich Panel Producing Line 380V/50HZ/3PH Sanxing















 Some of Our Customers:

Panel Building Material Shops EPS Board / Glass Wool Board Rock Will or EPS Sandwich Panel Producing Line 380V/50HZ/3PH Sanxing







Buyer Feedback









FAQ

Q: Are You the factory or trade company?

A:We are the factory,found in 1992, we work on alibaba export for 8 years.

Q: Can you make the machine according to my demand?

A: Yes. we have professional team and development personnel can plan to the suitable designs you need.

Q:What's the MOQ?

A:One set, more should be discount.

Q:What's the type of payment?

A:T/T is first

Q:Why we choose you of all the same industry?

A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.









A little More About Us:



Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of cold roll forming machine, we are also a supplier for lots of Chinese trading company and manufacturer.


Our main products include:

Ultimate construction machine SX-UBM,

Automatic construction machine ACM,

Screw joint panel roll forming machine,

Spiral seaming steel silo machine,

KR standing seam roll forming machine,

Flat steel sheet roll forming machine,

Deck Floor Roll Forming Machine,

Sandwich panel roll forming machine,

C/Z shape steel purlin roll forming machine,

Light Steel Frame Roll Forming Machine,

Rolling door roll forming machine, etc.


Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company.









Contact us

We have the right building equipment for your project and great cost savings.

So please come to sanxing and we will provide the buildings of your future.



Panel Building Material Shops EPS Board / Glass Wool Board Rock Will or EPS Sandwich Panel Producing Line 380V/50HZ/3PH Sanxing







WELCOME TO OUR FACTORY

WE ALSO PRODUCE MANY Others MACHINES


Panel Building Material Shops EPS Board / Glass Wool Board Rock Will or EPS Sandwich Panel Producing Line 380V/50HZ/3PH Sanxing





 Thanks For Contact us.

 See you soon.





Contact us if you need more details on Eps Roof Panel Sandwich Panel Roll Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Rock Wool Sandwich Panel Producing Line、Rock Woll Or Eps Sandwich Panel Machine Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
