Sanxing curving roof k q Span panel Arch roofing Roll Forming Machine for steel buildings Sewing Machine included.
Product Description
SANXING GROUP steel expert Since 1992
Machine Manufacturer & Steel Building Constructor
Company Information:
Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing.
The Arch sheet roofing is known as Truss less Roofing or Self Supported Roofing system. Known by customer focused on innovative products, backed by years of Industry knowledge.
Now, we have series machinery of 3 types, 15 models in total.
Welcome to visit us any future time.
Sanxing K Q Span Roof Roll Forming Machine for steel buildings
Type SX-1000-630 Hudraulic System Span Max 38 Meters
Panel profile:
Technology:
On site Production and installation of Self Supported curved roofing without any structure, enables faster and leak proof roofing systems, thus ensuring utmost flexibility in work and design.
Panel profile:
Easy & Quick Installation:
As the production is carried out on site, the installation will be faster , take an example, 1500 square meters area in just 12 hours, enabling to finish the project in very quick time.

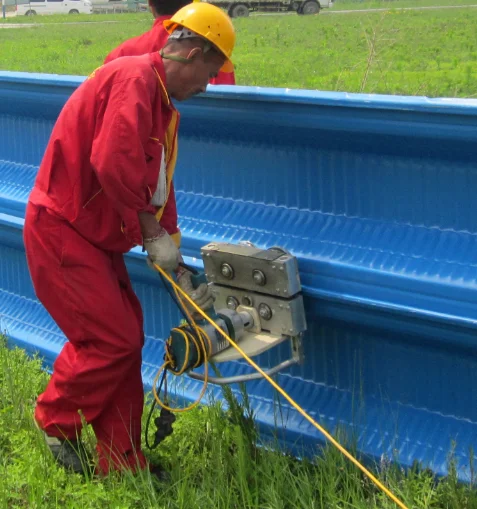

Seaming Machine Process:
Durabilityand Resistance to Corrosion:
Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized Steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration.
It is of High tensile Steel and comes in spectrum of colors, to enhance the appearance, life and value of the building; specially designed sewing machines eliminate use of fasteners and thus ensure 100% leak proof roofing.
It is suitable for hanger, warehouse, gymnasium, market, workshop, villa, parking, etc.
MAIN TECHNICAL SPECIFICATION:
Size: 9000mm × 2250mm × 2300mm
Total Weight: about 14000KG
Main Motor Power: 16.5KW
Forming power: 5.5kw
Bending power: 4.4kw
Cutting power: 4.0kw
Conical power: 3.0kw
Working Speed;
Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12,1Mov steel
Material of curving leaves: stainless steel
Step of rollers: 13 steps
Feeding Width: 1000mm
Effective Width: 630mm
The depth of the groove: 225mm
Thickness of the coil: 0.8-1.5mm
Operating factor of the panel: 63%
Proper span: ≤38m
Type of cutting: Roll-formed and length-set cutting
Engine: 40HP
Different Types of Profiles Dimensions:
All Accessories are included
Also another ones too.
Sanxing has the Certificate of ISO 9001, GMC, CE, BV SGS, and owns many patentes of inventions
1- The seller will offer the service of designing and calculation, far-distance guidance for free within 3 years.
2- The reply from the seller will be within 72 hours after receiving the buyer’s technical requirements.
3- The seller will help the buyer to prepare all the necessary data/information to build the project in within 3 years.
GUARANTEE
1. The guarantee period for rollers, shafts, cutting blade and bending paddles is 10 years from date of the machine arrives in the destination, Not included Damage man-made.
2. If any parts of the machine are damaged by man-made, the seller only charge for the basic cost.
Naked ,By vessel 40 Feet High Container.
Some of Our Customers
Q: Are You the factory or trade company?
A:We are the factory,found in 1992, we work on alibaba export for 8 years.
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T is first
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
We have the right building equipment for your project and great cost savings.
So please come to sanxing and we will provide the buildings of your future.
